The rotary screens are produced in different sizes which can are:
- VT 1.800 X 7.000 mm
- VT 2.000 X 8.000 mm
- VT 2.500 X 9.000 mm
- VT 2.500 X 12.000 mm
Maa Durga Services is able to offer customized solutions built upon specific customer
TROMMELS
We offer different techniques and waste screening systems to separate material. Thanks to our innovative technology we can also effect the removal of coarse parts. The screening devices are integrated in the transport path to have a filtering on the actual shortest path.
Screening plants for the separation of RSU, RSA, wood and plastic.

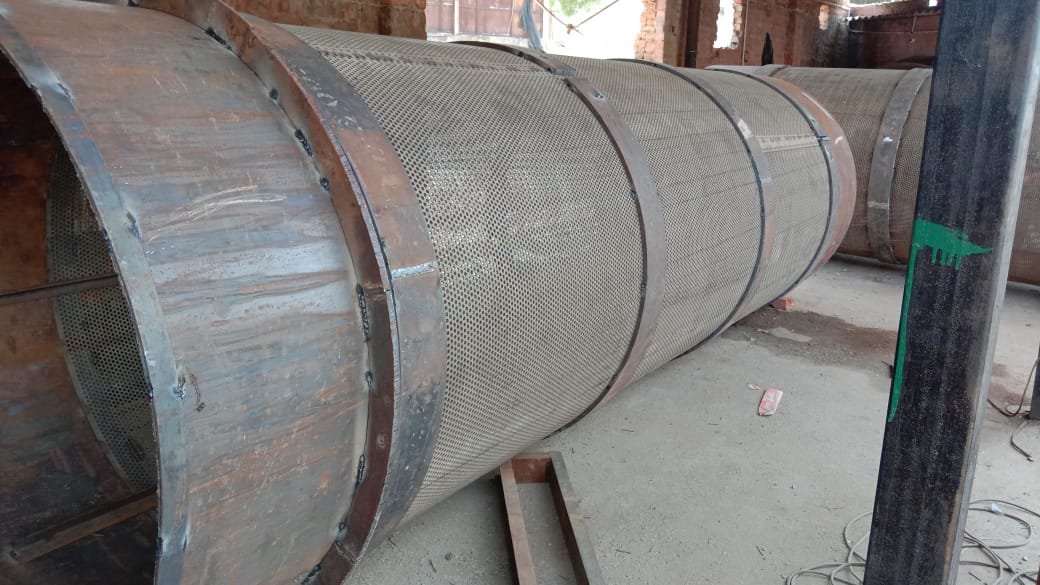

A Rotary trommel screen, also known as a rotary screen, is a mechanical screening machine used to separate materials, mainly in the mineral and solid-waste processing industries.It consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end
A trommel screen consists of a cylindrical drum which has many different size holes on its surface and works in a circular motion. As the drum rotates, the screen allows a particular size waste to be separated out forming a pile eg manure while the waste that is bigger than the size of the hole is retained at the back of the cylinder.
Advantages
Features
Technical features
Application Area
Advantages
- Excellence in both wet and dry applications.
- Trommel consists of concentric end sections and beam design with bolt-on screen plates for waste segregation.
- Trommel Screen manufactured by us has self-cleaning brushes.
- They are available in a variety of diameters and lengths depending upon the capacity of Waste Segregation.
- Customer satisfaction is our main motive hence trommel machines by us are low cost and easy to maintain.
- Simple to set up: They can be set up somewhere near the source of the auriferous stuff, where the water can be fed into the drum unit and there is a power source to run the unit
Features
- Proficient In Both Wet And Dry Applications
- Trommel Consists Of Concentric End Sections And Beam Design With Bolt-On Screen Plates
- Perfectly Concentric, Eliminating Vibration Or Wobble
- Cylindrical Drum Driven By Chain And Sprocket Drive Or Hydraulic System
- Available In A Variety Of Diameters And Lengths
Technical features
Maa Durga Services is able to offer customized solutions built upon specific customer
Application Area
- Municipal Solid Waste
- Crusher Plant
- Fertilizer Compost Plant
- Paper industry
Specialities of our Trommel
- Rubber tyre of sufficient size used for the circular motion
- Single wheel drive which is easy to operate and maintain
- Iron spring wire mesh is used for longer life and more perforation area.
- Strong build structure.
- Self-cleaning brushes are installed
Providing you the best range of Trommel Screen with effective & timely delivery..
Waste Segregation Capacity: 100 ton – 300 ton per day
